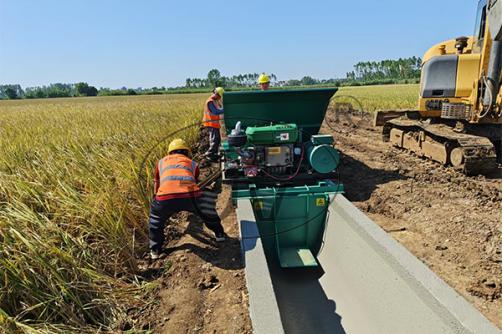

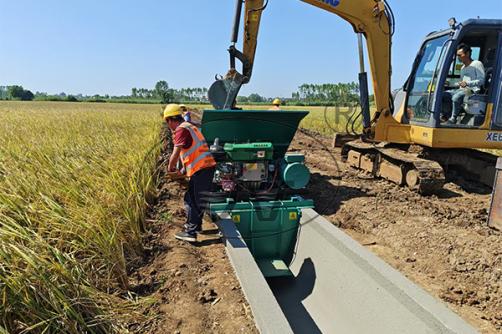

U shape Ditch lining machine
U shape Ditch lining machine
When the product is working, the first step is to start the electric vibrator to prepare for material dropping. When the concrete enters the thruster through the feeding hopper of this machine, the hydraulic pump station and oil cylinder start to expand and contract. The thruster pushes the concrete into the U-shaped cavity formed by the channel forming mold. At this time, the forming mold acts as an internal mold tire, and the formed concrete adsorbs onto the channel wall repaired by the mechanical shovel, and the channel top is also extruded and formed at the same time. At the same time, the vibration of the electric vibrator and the pushing force of the hydraulic cylinder are used to generate squeezing and compacting forces, causing the guiding rollers on both sides of the front of the mechanical body to move linearly in the tracks placed on both sides of the channel, thus achieving the function of automatic walking. Due to the thrust of the oil cylinder and the vibration of the vibrator on the concrete, the compactness and strength of the U-shaped channel are enhanced, achieving five major performance advantages of the U-shaped component: long distance, thin wall thickness, high strength, leakage prevention, and beautiful appearance.
Compared with prefabricated tile installation anti-seepage channels and on-site pouring machinery for soil molds, this equipment saves more than 55% of water and increases work progress by 5-8 times. We have overcome the industry challenges of difficult management, significant environmental impact, and susceptibility to damage in the later stage of prefabricated anti-seepage channels.
The machine adopts fully automatic hydraulic control, with stable and reliable performance, durability, high degree of automation, low labor intensity, and the functions of precision repair of channel groove foundation, automatic walking, and automatic control of channel pouring thickness, levelness, and straightness. The lining quality is good, the channel end is straight, the water passing end face is standard, the concrete is dense, the lining thickness is uniform, the surface is smooth and flat, the integrity is strong, durable, the anti-seepage effect is good, the service life is long, and the channel water utilization coefficient is high. The experimental measurement shows that the effective utilization coefficient of channel water is 400m, and the channel head and tail tests reach 0.988. This machine has a small number of production operators, high production capacity, and can pour more than 400 meters of channels per day. It is very suitable for the construction of large-scale Dounong canals and is a replacement product for U-shaped groove forming machines and steel wire rope traction channel cast-in-place machines, filling the market gap.
Compared with prefabricated tile installation anti-seepage channels and on-site pouring machinery for soil molds, this equipment saves more than 55% of water and increases work progress by 5-8 times. Solved the problem of deformation of prefabricated U-shaped channel fixing frames and omitted intermediate processes, improving the anti freezing and anti swelling ability of the channel body.
Compared with prefabricated tile installation anti-seepage channels and on-site pouring machinery for soil molds, this equipment saves more than 55% of water and increases work progress by 5-8 times. We have overcome the industry challenges of difficult management, significant environmental impact, and susceptibility to damage in the later stage of prefabricated anti-seepage channels.
The machine adopts fully automatic hydraulic control, with stable and reliable performance, durability, high degree of automation, low labor intensity, and the functions of precision repair of channel groove foundation, automatic walking, and automatic control of channel pouring thickness, levelness, and straightness. The lining quality is good, the channel end is straight, the water passing end face is standard, the concrete is dense, the lining thickness is uniform, the surface is smooth and flat, the integrity is strong, durable, the anti-seepage effect is good, the service life is long, and the channel water utilization coefficient is high. The experimental measurement shows that the effective utilization coefficient of channel water is 400m, and the channel head and tail tests reach 0.988. This machine has a small number of production operators, high production capacity, and can pour more than 400 meters of channels per day. It is very suitable for the construction of large-scale Dounong canals and is a replacement product for U-shaped groove forming machines and steel wire rope traction channel cast-in-place machines, filling the market gap.
Compared with prefabricated tile installation anti-seepage channels and on-site pouring machinery for soil molds, this equipment saves more than 55% of water and increases work progress by 5-8 times. Solved the problem of deformation of prefabricated U-shaped channel fixing frames and omitted intermediate processes, improving the anti freezing and anti swelling ability of the channel body.
